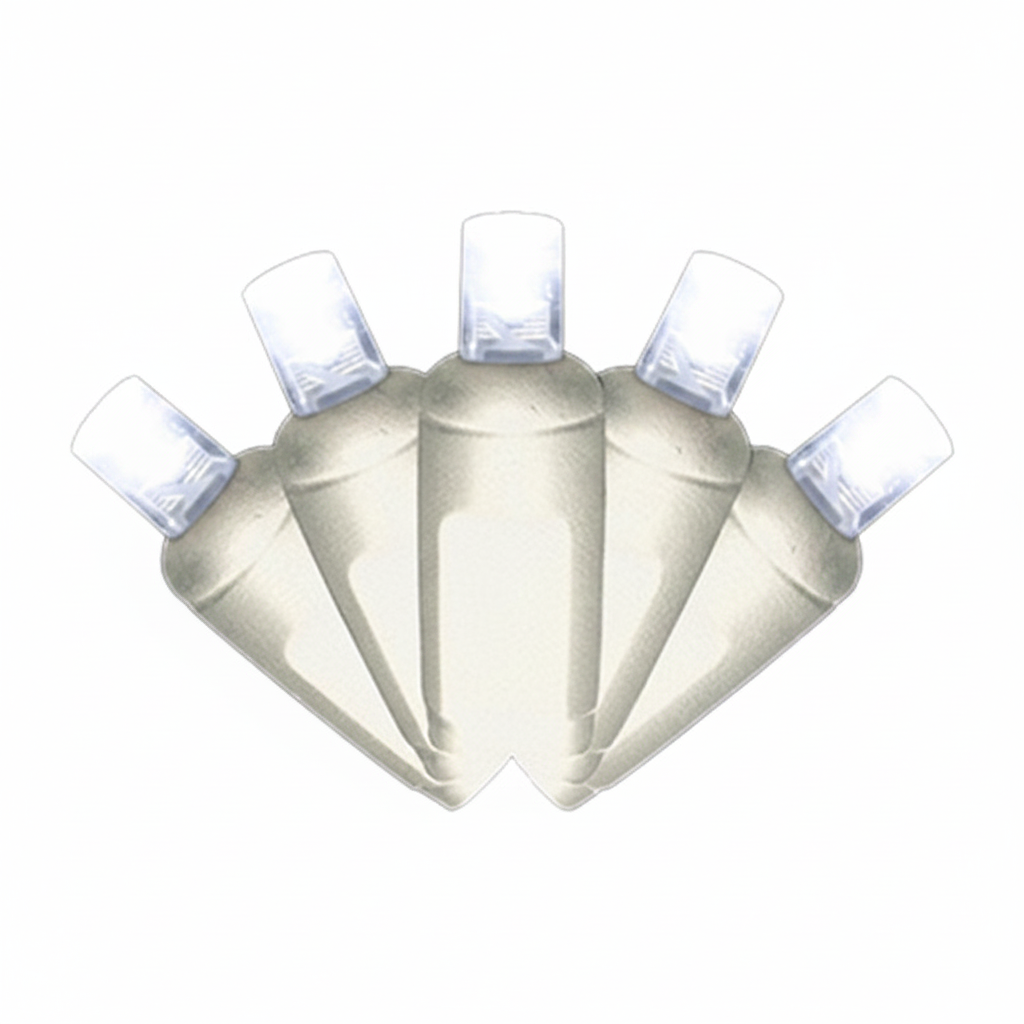

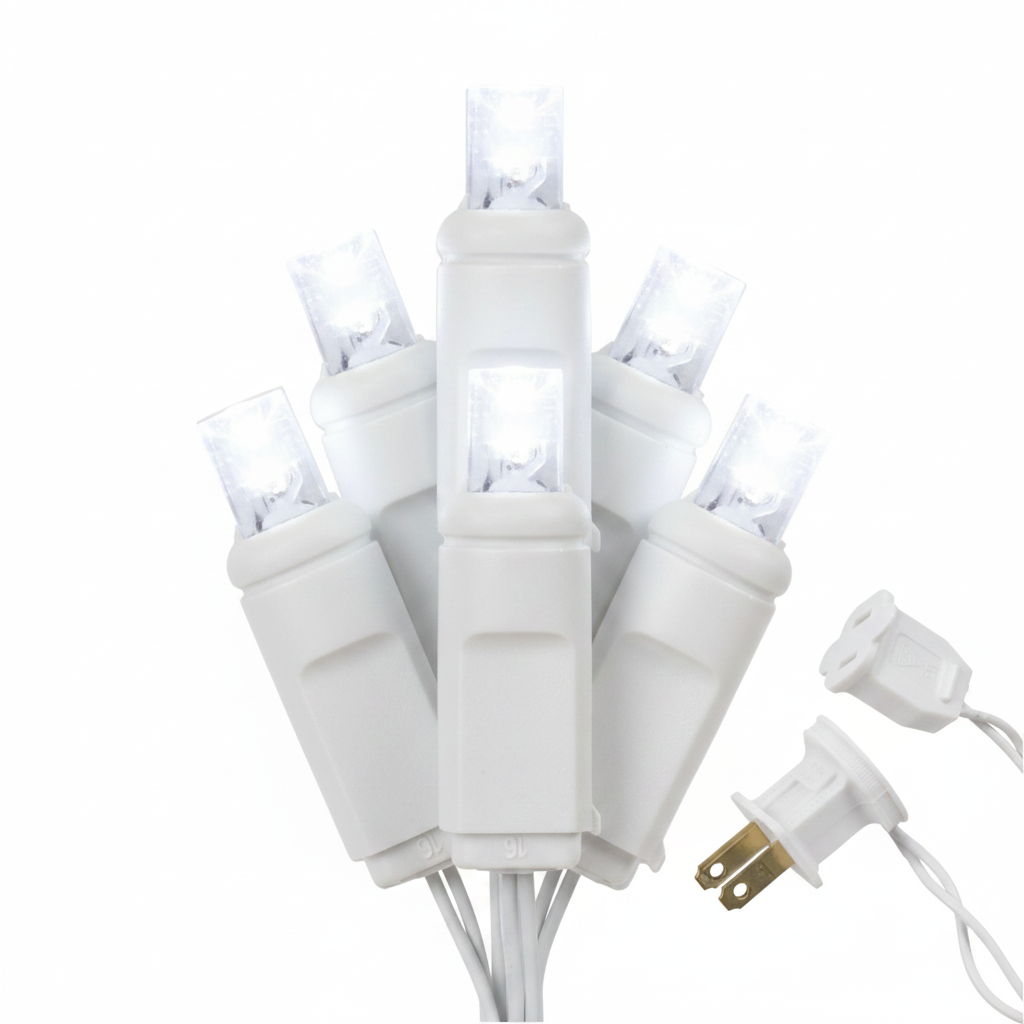

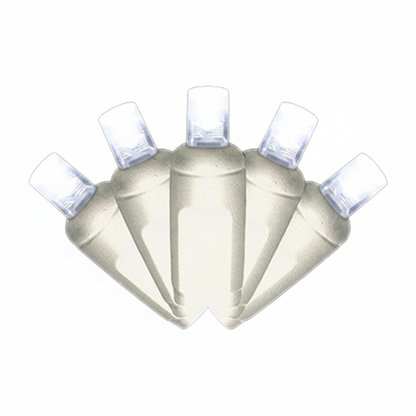

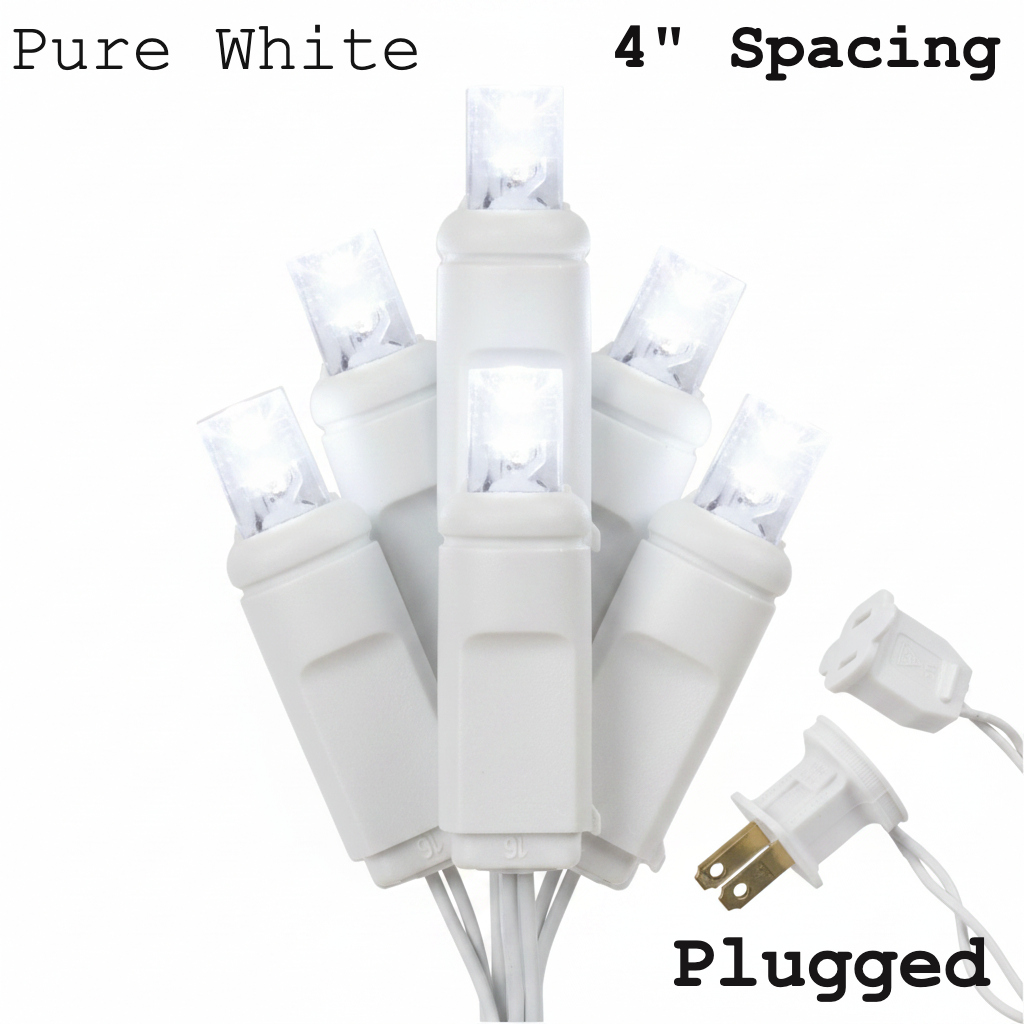

These 5mm wide-angle LED light sets produce a crisp pure white glow using a concave lens design that ensures uniform light distribution from all viewing angles. The single-mold construction prevents moisture intrusion and bulb loss, while the in-line rectifier eliminates flicker for a steady output. Built with 22 AWG white wire, these 70-light strands are designed for professional integration into event venues, commercial interiors, and holiday displays where blending into light-colored surfaces is required.
Each 23.5-foot set features 4-inch bulb spacing and is rated for 75,000 hours of bulb life. These dimmable units operate on 120V and include stackable, fused male and female Edison plugs for efficient power management. For large-scale projects, installers can connect up to 45 sets end-to-end. The acrylic bulbs are impact-resistant and UL Listed for both indoor and outdoor applications, including tree wraps and architectural outlining. Case configurations include 24 sets, balled and de-tagged for immediate deployment by contractors and decorators.
Spec
Value
05254
25 Lights / 4" / 9' Long
05504 & 05506
50 Lights / 4" and 6" Alt / 22' Long
05506
50 Lights / 6" / 26' Long
05704
70 Lights / 4" / 23.5' Long
Bulb Life
75,000 Hours
Bulb Material
Acrylic
Bulb Style
5MM Wide Angle, Concave, Single Mold lights
Bulb Type
LED - Steady
Case Qty
24
Connection Type
Standard Plug, Stackable, Fused
Dimmable
Yes
End Wire
Match Light Spacing
Grade
Premium - Commercial
Lead Wire
Match Light Spacing
Max Amps Per Bulb
0.0008
Max Watts Per Bulb
0.096
Packaging
Balled and De-tagged
Rectifier
In Line
Voltage
120 Volts
Warranty
Warranty
Wire Color
Green, White, and Brown
Wire Gauge
22 AWG
– 25 Light Sets
Connect up to 80 End to End
– 50 And 70 Light Sets
Connect up to 45 End to End
